Deeper Smart Sonar Chirp Plus 2.0 Fish Finder |

Deeper Smart Sonar Chirp Plus 2.0 Fish Finder

Accurate and reliable Water Level pressure transducer designed for remote monitoring and recording of water level and pressure data in groundwater pumping and sludge tests, storm-water flood analysis, and run-off, as well as surface water irrigation canals, streams, and river gauging.

Unbelievable Target Separation And Extreme Depths

With a target separation of 1cm / 0.4”, you’ll be able to easily pinpoint target species even when they are amongst a school of bait fish or track the tiniest lure when vertical jigging. Surface clutter and noise are minimal, so you can expect precise sonar readings in very shallow water and locate fish as close as 15cm / 6” from the water’s surface. To the other extreme, you will be able to distinguish bottom huggers in water as deep as 100m / 330ft.

Impressive Casting Range And Easy Portability

Whether you’re a group of two or ten, the Deeper START fish finder helps you find the perfect place to fish so you can spend more time catching, comparing, and chilling with friends. Fish into the night by utilizing the START’s automated flashing light. Fishing + friends = Good times.

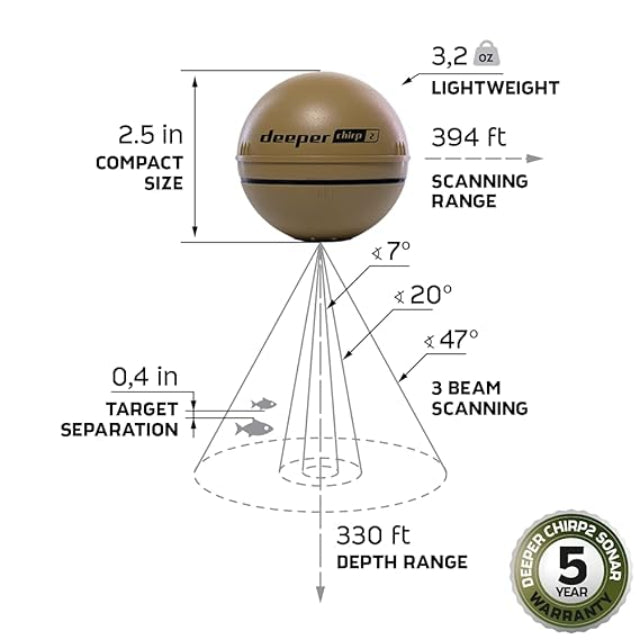

3 Beam Frequencies

Discover fish-holding spots faster by scanning an area with the wide angle beam, 47° (100 kHz). Use the mid-angle beam, 20°(240kHz) to drill in on that hotspot you've located. Hone in on your target species with the very detailed, 7°(675kHz) narrow-angle beam

One Sonar For All Seasons And Fishing Types Kayak/SUP fishing

Installs on your kayak in seconds. No drilling, cables, or batteries are required. Ideal for SUP fishing, it fits comfortably into a hatch or tackle box. Troll and map or cast out to reach those hard-to-access areas.



Boat fishing

Ideal for small boats. Cast out or troll from your pontoon, jon boat, inflatable boat, or belly boat. Troll smoothly at a low speed of 3kph / 2mph for accurate sonar readings or cast out to hard-to-reach places. Ice fishing - As an ice fishing flasher, Deeper CHIRP+ 2 makes hole hopping easier with no transducer or wires. Just drill and drop to see when your target species are about to strike.

Shore fishing

Just cast out your sonar, reel it back in and get the fishing data you need. Locate the fish, find features to target, or map out your lake to get the complete picture



MODEL - DP4H10S10

SPECIFICATIONS -

Material:  ABS enclosure, Titanium insert

Compatibility:  Learn More

Sonar Type:  3 Frequency CHIRP - Narrow CHIRP 675 kHz (cone angle 7°),

                       Medium CHIRP 240 kHz (cone angle 20°),

                       Wide CHIRP 100 kHz (cone angle 47°)

Target Separation:  1 cm. / 0.4 in Narrow Chirp,

                                  2.4 cm. / 0.94 in Medium Chirp,

                                  2.4 cm. / 0.94 in Wide Chirp

Depth Range:  15 cm / 6 in – 100 m / 330 ft

Sonar Scan rate:  Up to 15 scans per second

Temperature sensor:  Integrated temperature sensor (accuracy 0.2°C

Operating Temperature:  -20°C to 40°C / -4°F to 104°F

GNSS (Global Positioning Systems Supported):  GPS, GLONASS, Galileo, BeiDou, QZSS

Operating Time:  GPS ON up to 9 hours, GPS OFF up to 15 hours

Charging Technology:  Fast charge, 80% in 60 min., 100% in 110 min.

Internal Battery:  Li-Ion, 3.8V Rechargeable, 1300 mAh

Power Adapter (not included in the box, recommended):  Input 110V/220V. Output Micro USB, 5V 2A

Connection type:  Wi-Fi

Connection Range:  Stable connection up to 120 m / 394 ft

Colour: Desert Sand
