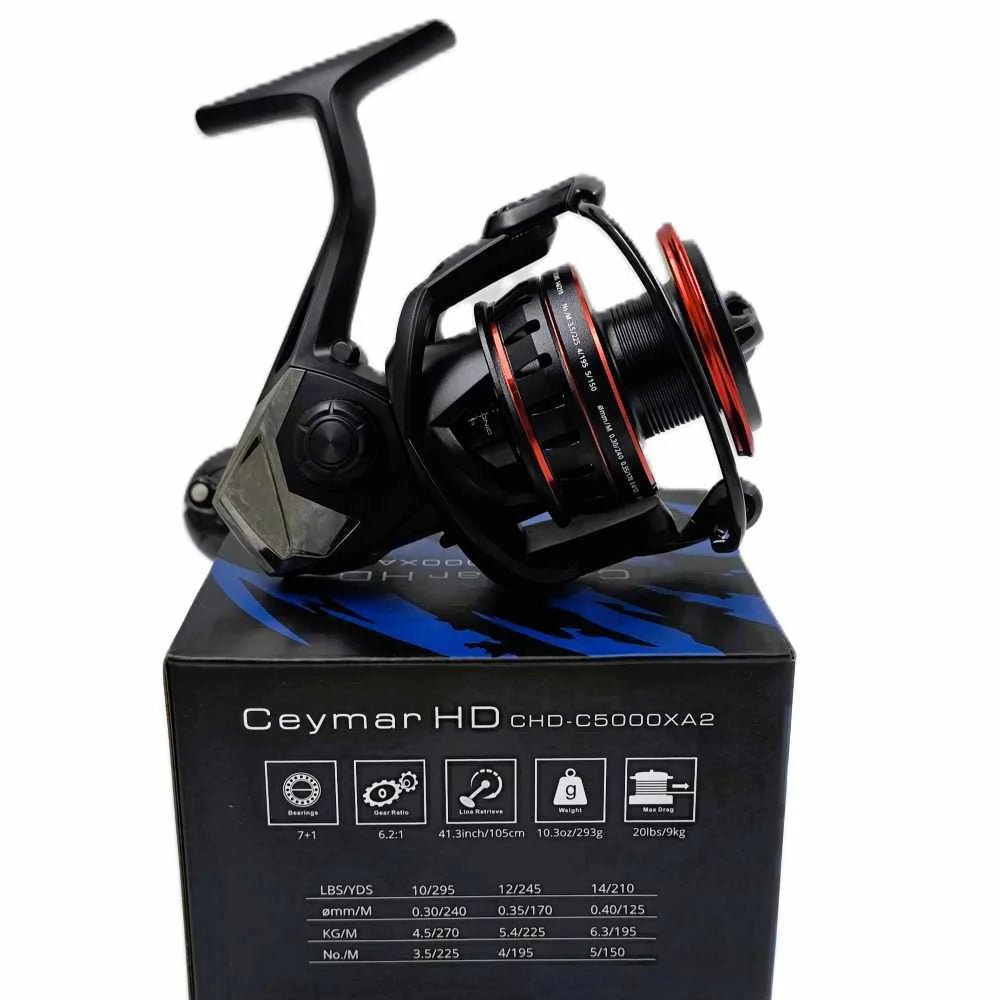

Okuma Ceymar HD Spinning Reel | Special Knob Edition | CHD-C5000-XA2 |
- HDG-II: Oversized High-Density Gearing
- EFR-II: Even Flow Roller System with DLC Coating
- Light Weight and Machined Aluminum Screw in Handle Design
- Gearing Stabilization Design
- Flite Drive
- Precision Machine Cut Brass Pinion Gear
- Heavy Duty, Solid Aluminum Bail Wire
- Rotor Brake
- Light Weight and Machined Aluminum Spool
- Multi-Disc, Japanese Oiled Felt Drag System
- Quick-Set Anti-Reverse Roller Bearing
| Model No | Gear Ratio | Max Drag | Weight | Ball Bearing | Line Retrieve Per Crank | Mono Line Capacity (Lb - Yd) |
| CHD - C5000 - XA2 | 6.2 : 1 | 9 Kg / 20 Lb | 293 Gm / 10.3 Oz | 7BB + 1RB | 105 Cm / 41.3 Inch | 10 - 295 / 12 - 245 / 14 - 210 |
ORIENTATION - Left-Handed/ Right-Handed
TECHNOLOGY:
HDG-II: High Density Gearing II Oversized Main Gear
Under the original high-strength HDGII, Okuma has enlarged the main gear to provide better strength and a higher gear ratio. Taking the 3000 sizes as an example, the Ceymar HD main gear is larger than the standard gearing by 7%.
Gearing Stabilization Design
Provides excellent support on the top, middle and bottom of the pinion gear, making the gears extremely stable and durable.
Flite Drive™
In most reels, when the main shaft is moved up and down, a large area of friction is generated within the pinion gear which causes you to feel resistance when turning the handle. To reduce drag and achieve a free rotation, we hollowed out the center of the pinion to reduce friction with the shaft. This change to the pinion gear creates the ultimate in stabilization and a friction-free handle winding experience.
Diamond-Like Carbon (DLC): Even Flow Roller System With DLC Coating

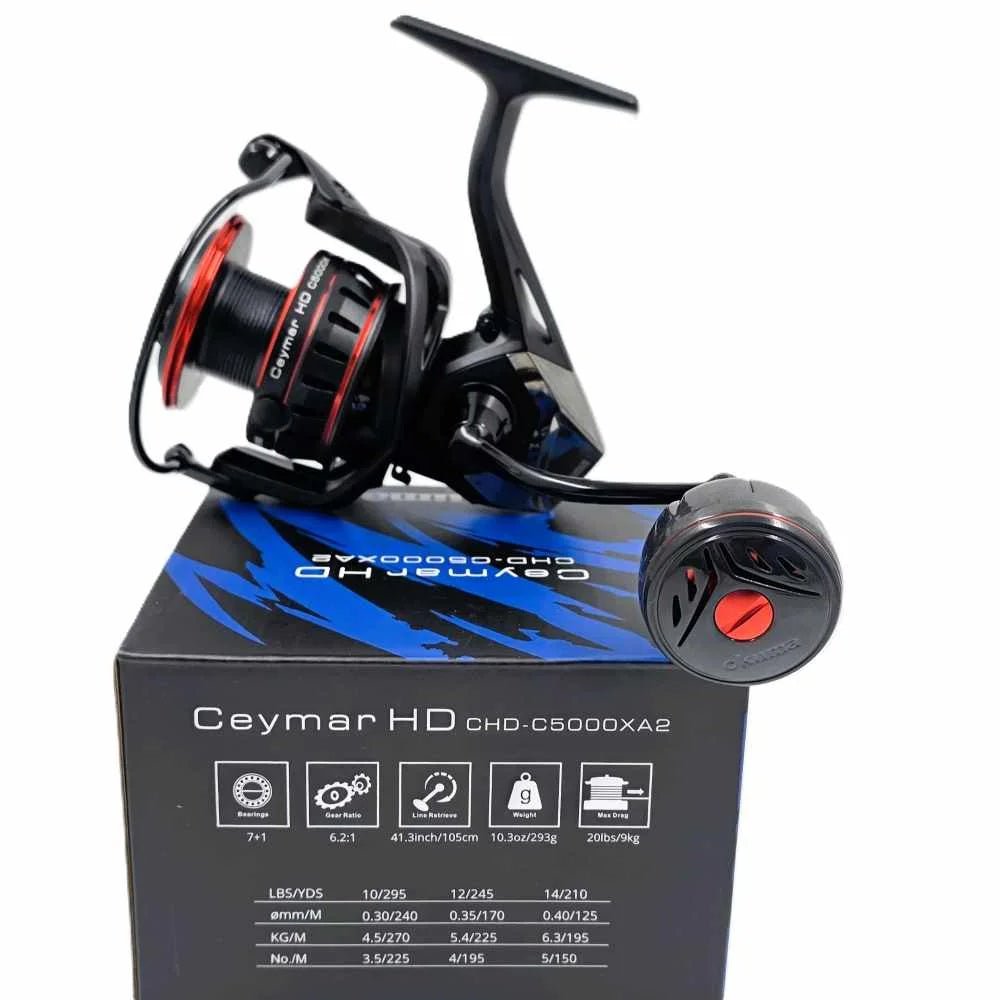

Light Weight And Machined Aluminum Screw-In Handle Design With Special Round Knob
The brand new Ceymar HD is designed and developed based on the concept of Power! The Ceymar HD features HDG-II – High Density, Oversized Gearing, aluminum screw-in handle and a gear stabilization system providing the ultimate in strength and cranking power. In addition, the Flite Drive™ effectively reduces rotational resistance, delivering not only strength, but also an unrivaled lightweight and smooth feel.
